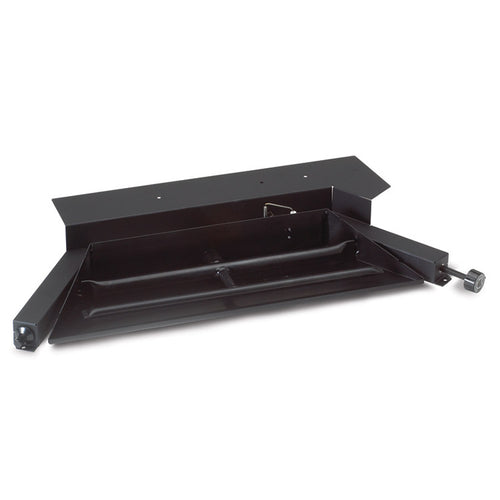

G46 18" Vented Gas Burner with Safety Pilot Kit - Peterson Real Fyre

Our Products: Peterson Accessories > Peterson Burners And Ignitions > G46 Burners And Ignitions
G46 18" Vented Gas Burner with Safety Pilot Kit - Peterson Real Fyre
Price: $690.00
SKU: G461820
Brand: Peterson Real Fyre

Add to the cart Add to Cart
Previous Item Previous Item   Next Item Next Item

The G46 burner is growing in popularity because it is certified to ANSI and CSA standards, a requirement in some parts of the country and Canada. This patented ribbon burner technology system features a control valve with built-in regulator and piezo ignition system. Available for natural and L.P. gas, they are only available in standard configurations - no see-thru sets available. From 40,000 to 65,000 BTUs, available with factory installed manual safety pilot, basic on/off remote control (11 series), variable flame height remote (17 series), or electronic on/off remote with non-standing pilot (01 series). Another benefit is that the pre-installed components (pilot kit, ignitor, regulator) are all neatly contained within the angled sides and the rear of the burner system rather than having a bulky pilot kit sticking out of one side or the other.

STANDARD FEATURES
  • ANSI Certified burner
  • Pre-assembled control valve and regulator
  • Piezo ignitor
  • Vented Glowing Ember Bed
  • Custom Grate
  • Connector Kit
  • Glowing Embers
  • Sand (nat) or vermiculite (lp)
  • Burner Clips
  • Damper Clamp
  • Remote Control (if remote ignition selected)
FOR USE WITH
  • Charred Series Logs
  • Classic Series Logs
  • Designer Series Logs
 BURNER SPECIFICATIONS
  • Vented gas burner
  • Manufactured for indoor use
  • Btu/Hr - 40,000 (NAT)
  • Btu/Hr - 40,000 (LP)


MINIMUM HEARTH DIMENSIONS
  • Manual Safety Pilot - 26" W (front) x 20" W (rear) x 15" D x 18" H
  • Safety Pilot With Remote - 26" W (front) x 20" W (rear) x 15" D x 18" H
  • Electronic Safety Pilot With Remote - 28" W (front) x 22" W (rear) x 15" D x 18" H

Real Fyre Vented G46 Burner Install ManualG46 Vented Installation Manual

  • All Peterson Vented Gas Logs are WARRANTED for as long as you own them (lifetime)
  • All Peterson Burner Assemblies are WARRANTED for TEN (10) YEARS
  • SPK-26 Controls are covered by a THREE (3) YEAR ìAll Partsî Warranty
  • All other Peterson Valves, Pilots and Controls are covered by a ONE (1) YEAR Limited Warranty (excluding batteries)
  • All warranties apply only to the original purchaser
  • All warranties are for parts only and DO NOT include labor

  • Free Shipping on all orders over $99.
  • In stock products ship within 1-2 business days.
  • Transit times typically vary from 1-6 business days.
  • This product generally ships with a standard carrier and should not require a signature
  • This product may ship LTL freight as part of a larger order or due to weight
  • Please be sure to inspect the all freight shipments carefully and note any damages or missing items on the delivery receipt.
  • In the event of possible concealed damage, freight customers MUST write "Pending Inspection" next to their signature on the delivery receipt. Failure to write "Pending Inspection" on the delivery receipt will bar the customer from recovery for undiscovered/concealed damage, after the fact.
